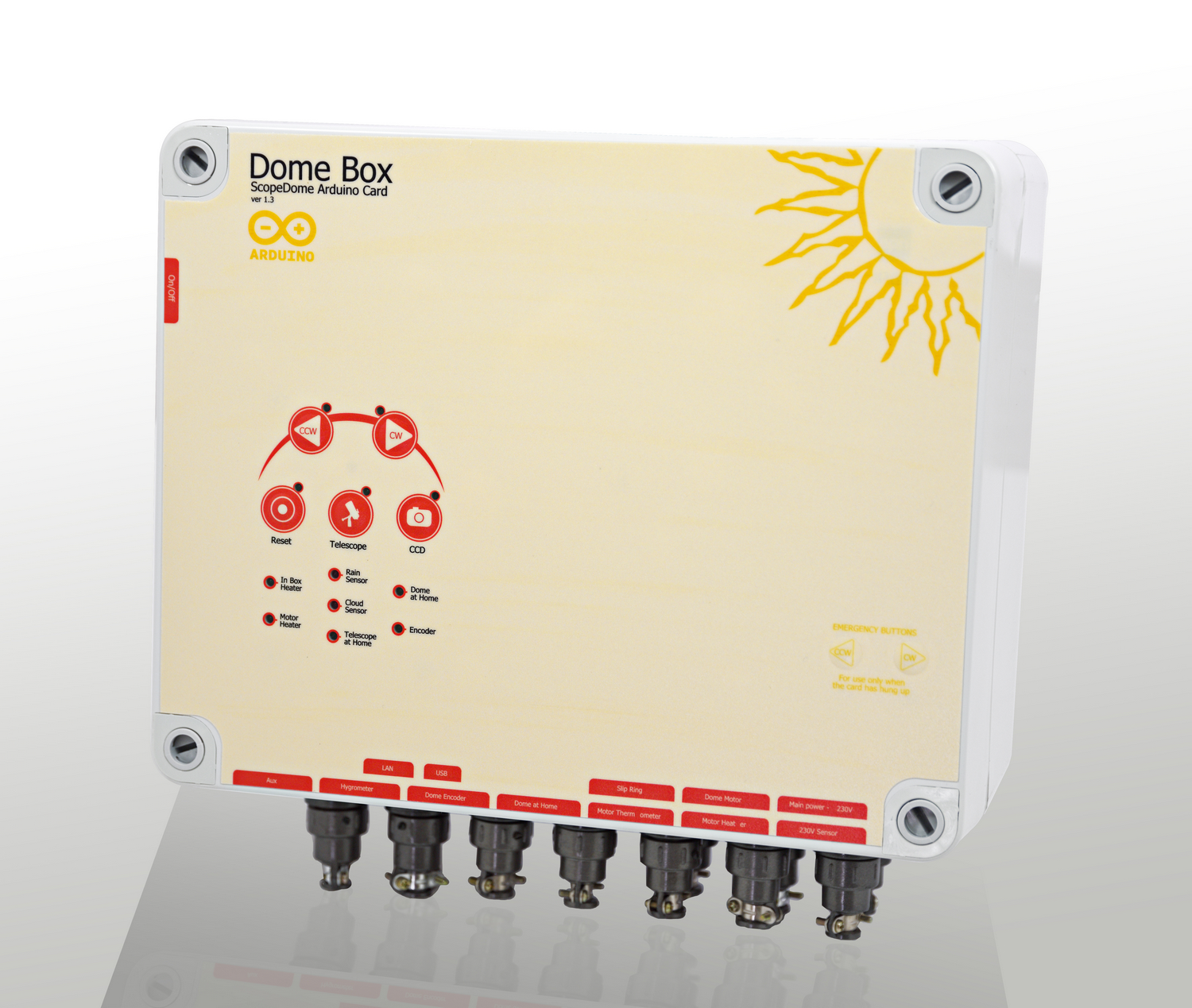

ScopeDome Arduino Card ver. 1.3

LCD display fro Scopedome arduino card

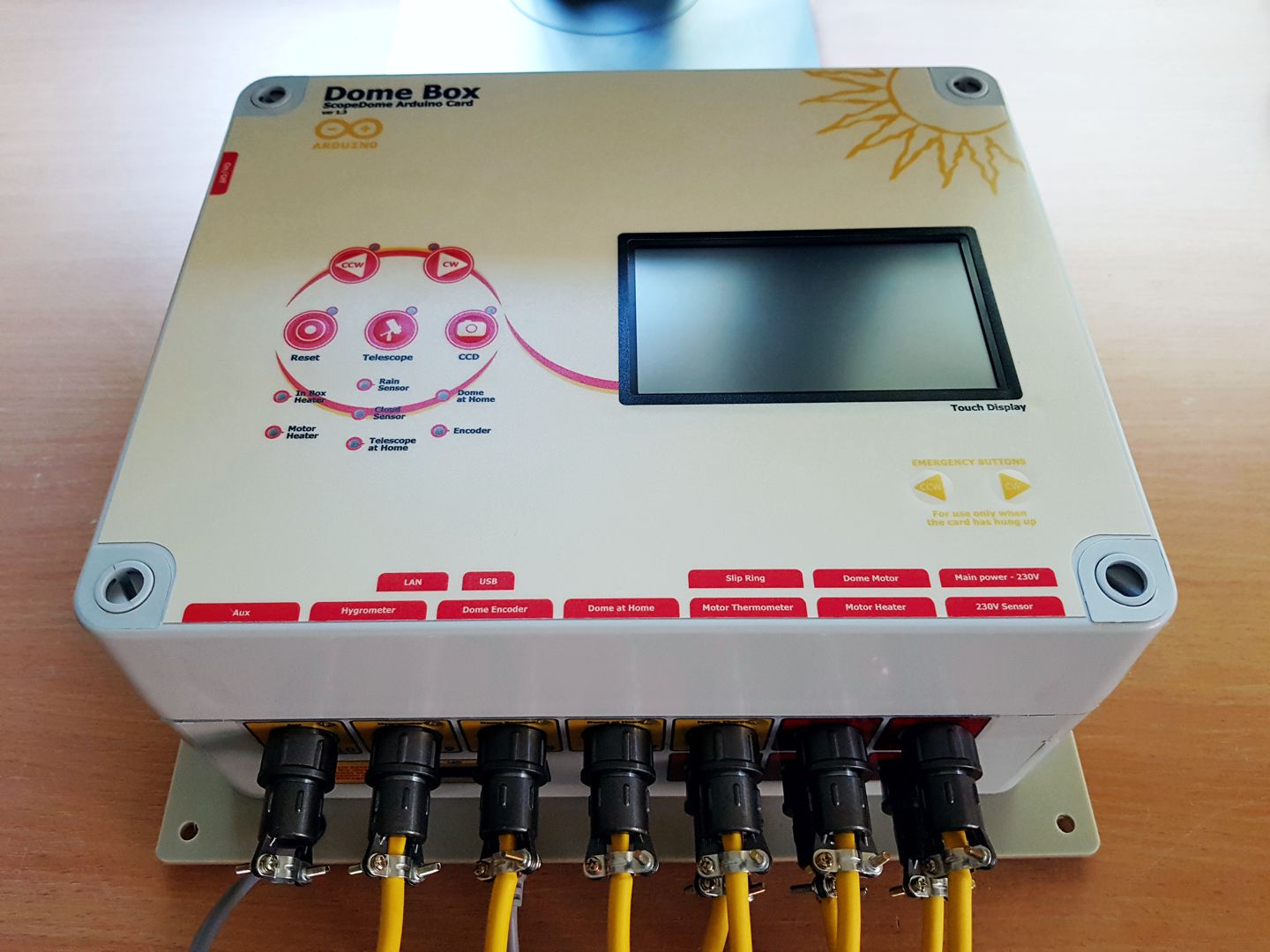

ScopeDome Arduino Card with LCD display
LCD display
Arduino card with LCD
PCB
ScopeDome_Arduino_xxxx
ScopeDome_Arduino_xxxx_3

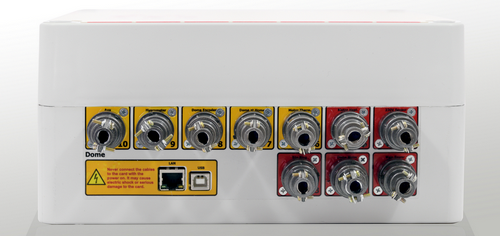

ScopeDome_Arduino_xxxx_2 - Small

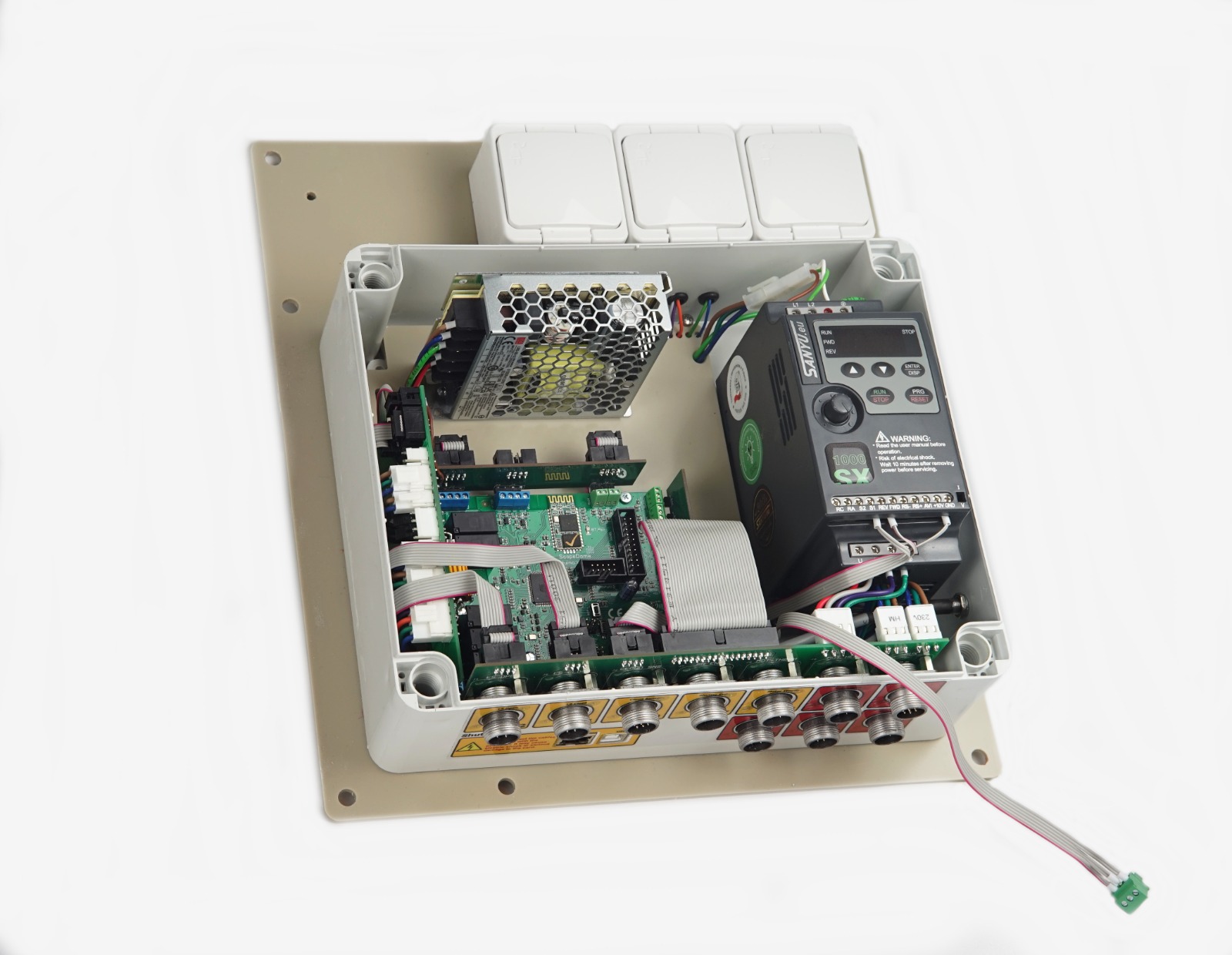

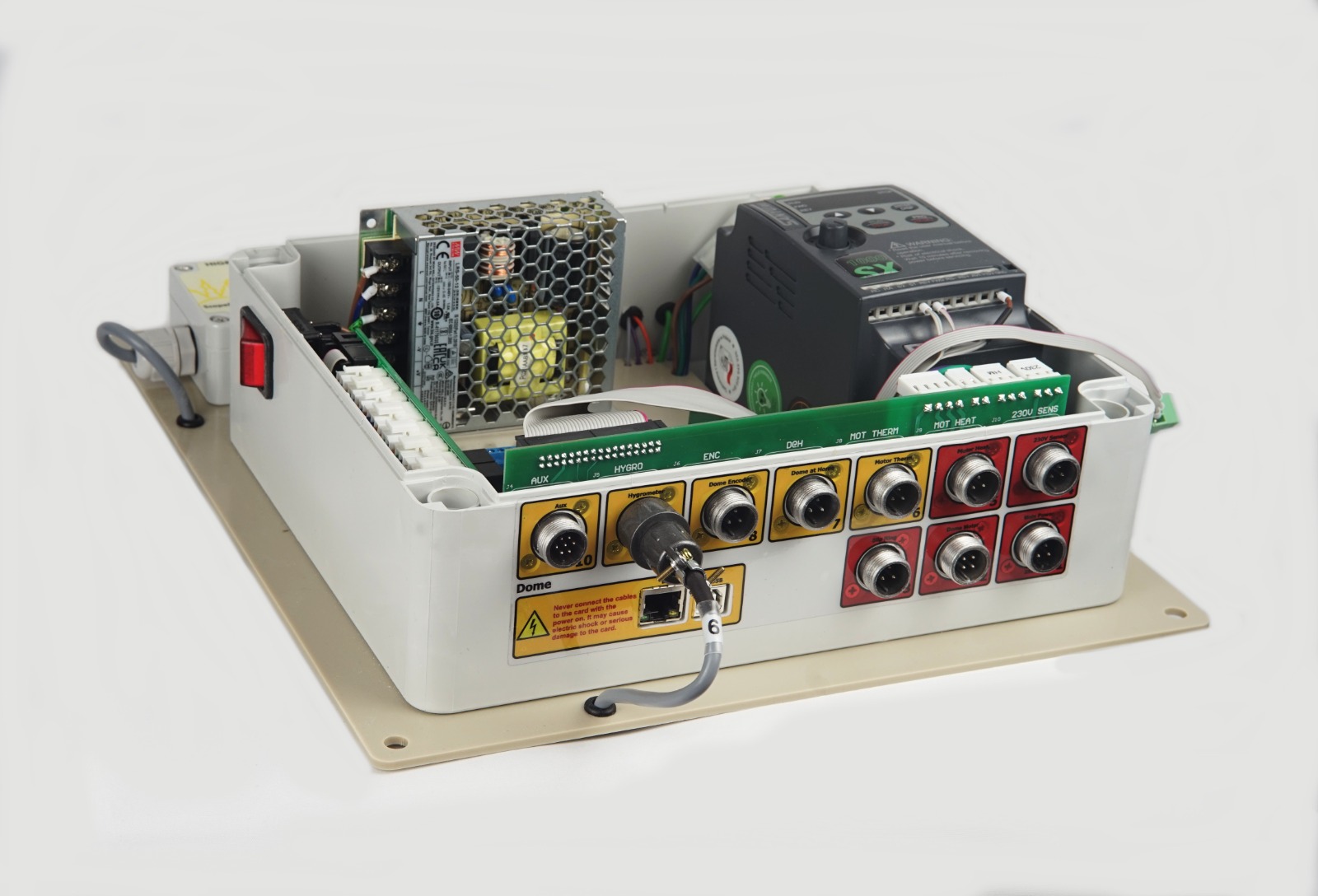

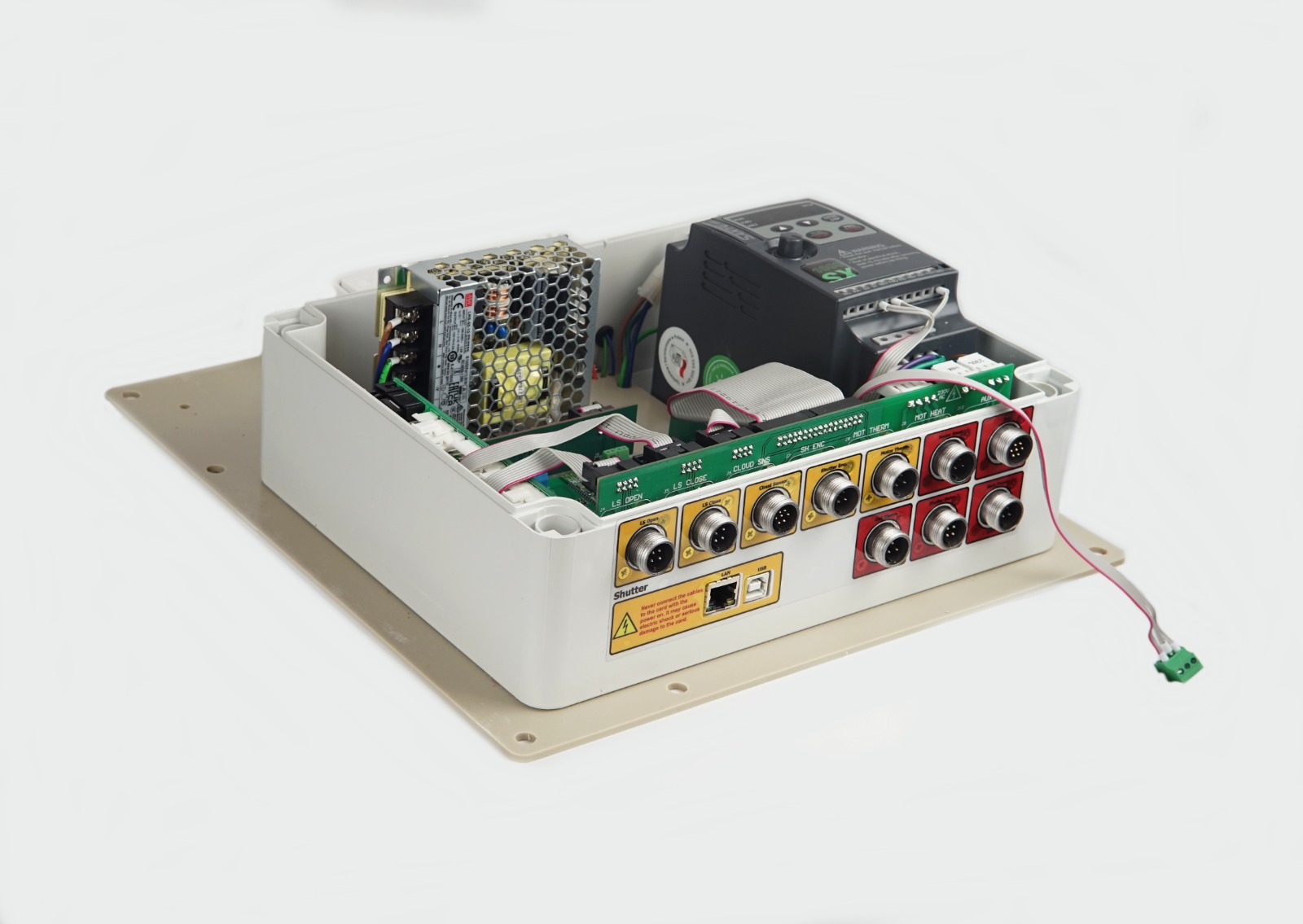

Plug_AndPlay_2

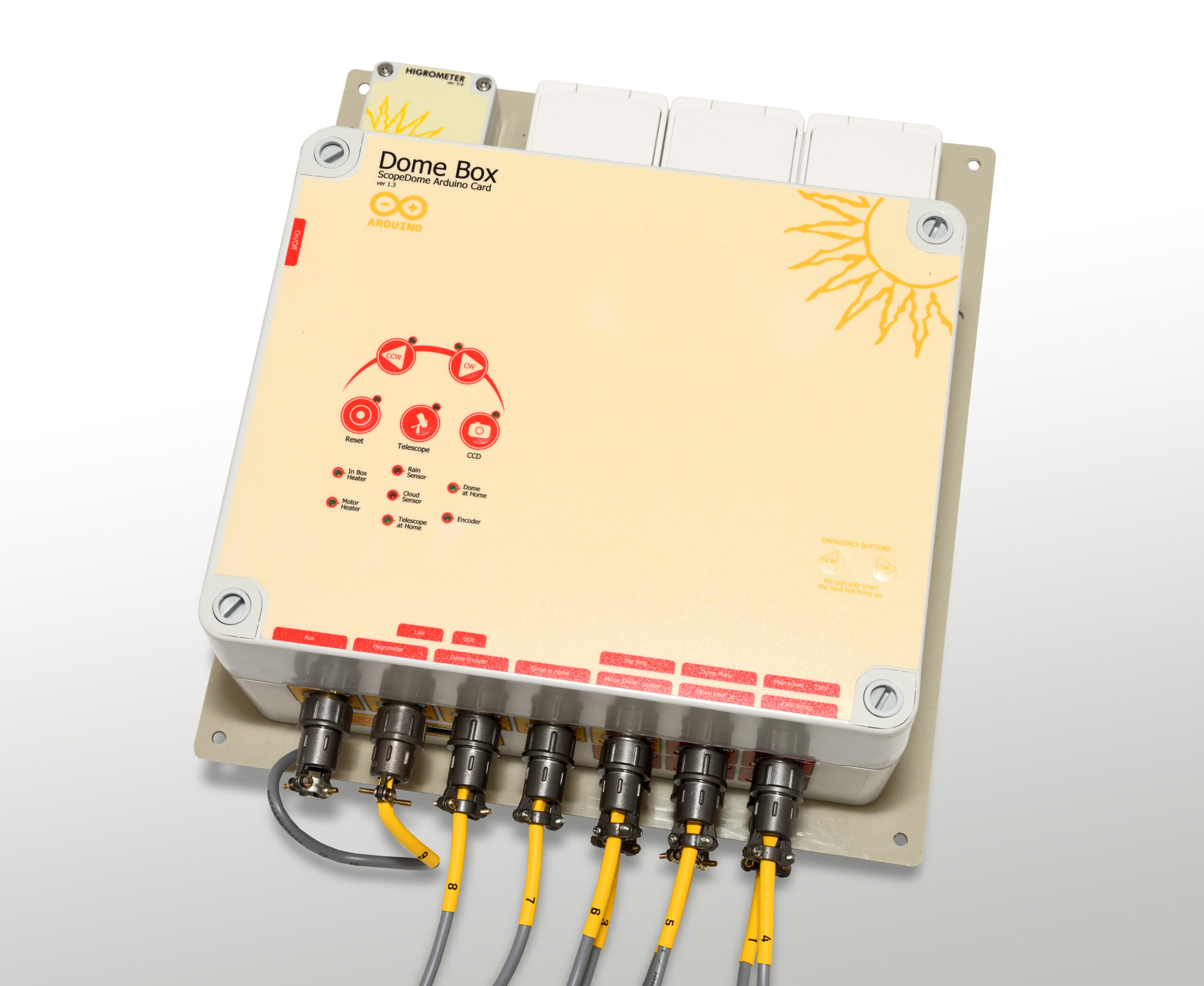

3M_PandP

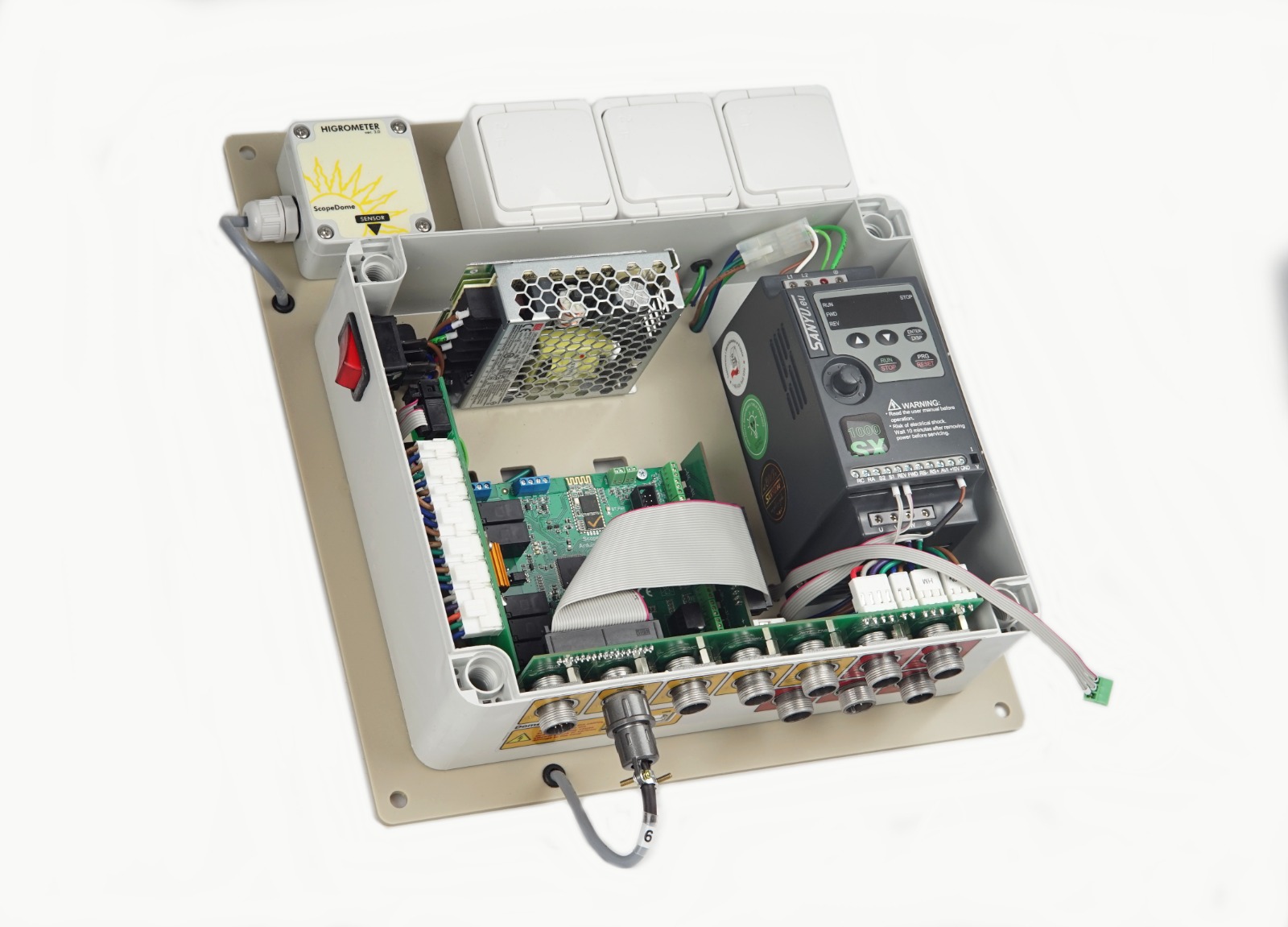

3M_PandP_Inside (1)

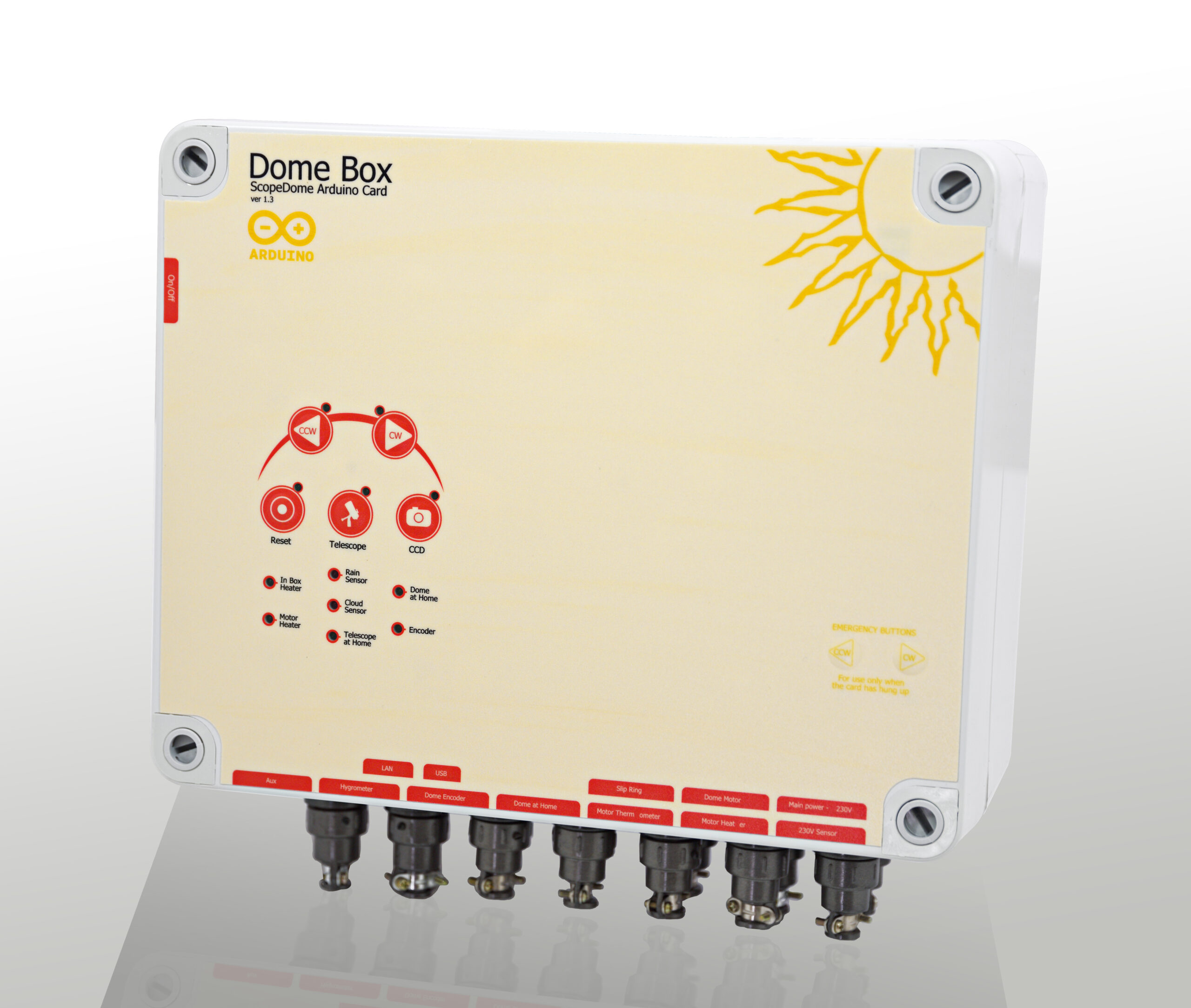

ScopeDome_Arduino_Card_1

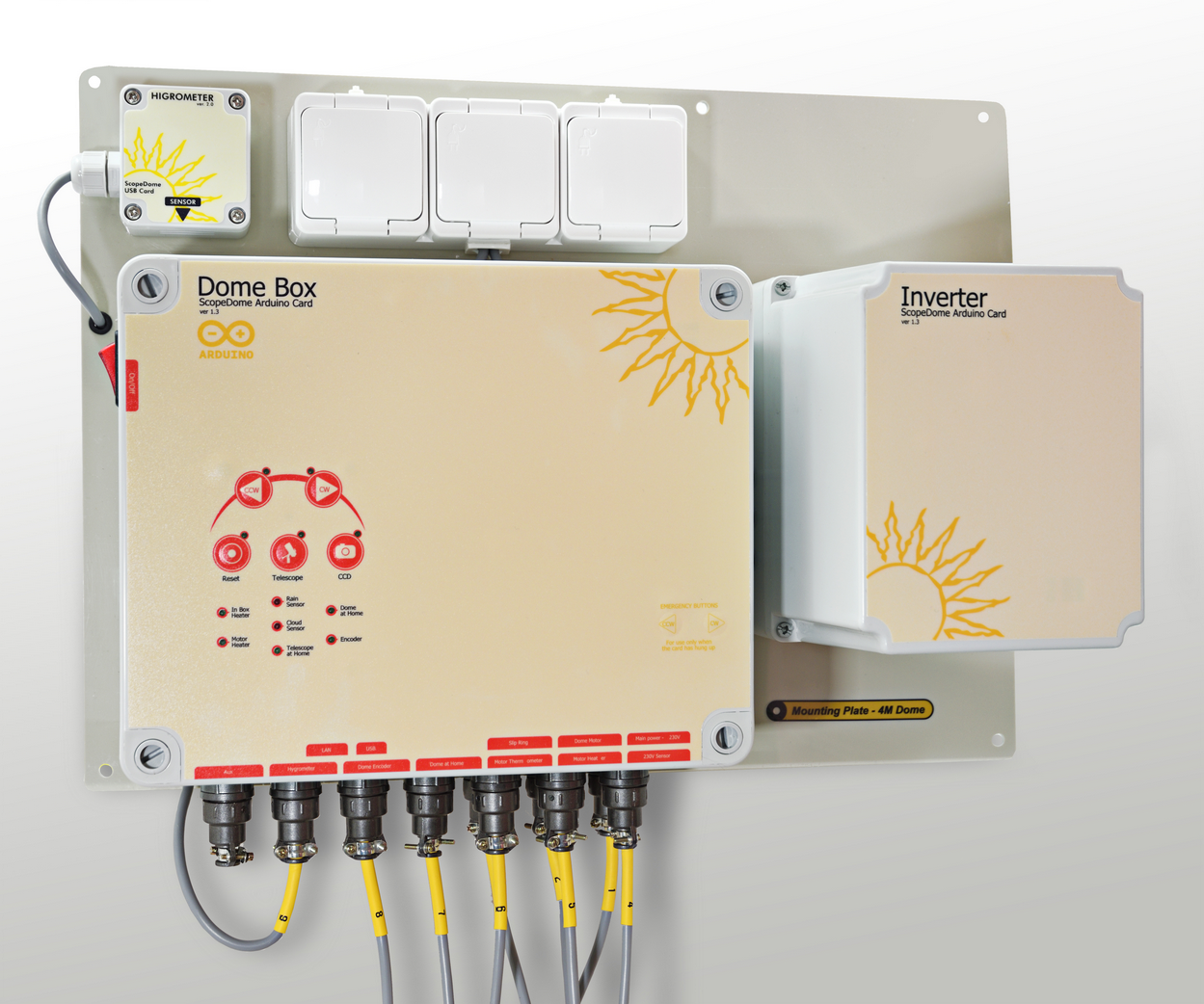

Plug_AndPlay_1
previous arrow
next arrow
PlayPause

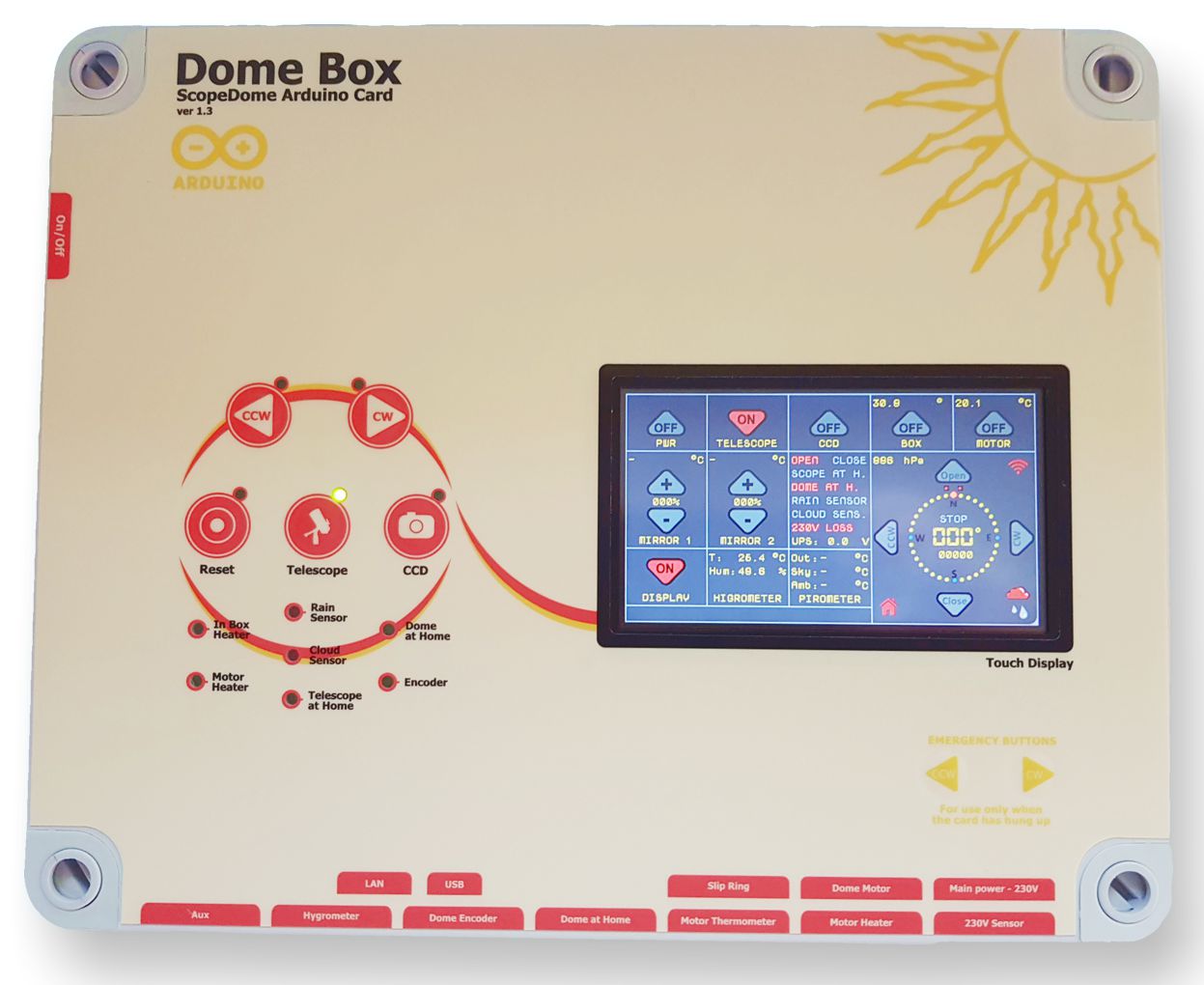

LCD display
Arduino card with LCD
PCB
ScopeDome_Arduino_xxxx
ScopeDome_Arduino_xxxx_3
ScopeDome_Arduino_xxxx_2 - Small
Plug_AndPlay_2
3M_PandP
3M_PandP_Inside (1)
ScopeDome_Arduino_Card_1
Plug_AndPlay_1
previous arrow
next arrow

Main features

  • Module designed to control the astronomical observatory (dome, roll-off, clamshell)
  • Compatibility with the Arduino environment (Arduino Mega clone)
  • Open Source communication protocol
  • Control via Ethernet or USB
  • Powered by an external power supply
  • Two modules can be connected via BlueTooth in Master and Slave modes
  • The Master module controls the dome's rotation, the Slave module controls the dome's shutter
  • Emergency closing of the dome in case of e.g. power failure, rain, clouds, low UPS battery voltage

Specification

  • driver compatible with Windows 7, 8, 10 (32 i 64 bit)
  • buildin mini web serwer
  • module compatible with Arduino Mega (AtMega2560-16)
  • built-in Ethernet module (W5200)
  • built-in BlueTooth HC-05 module

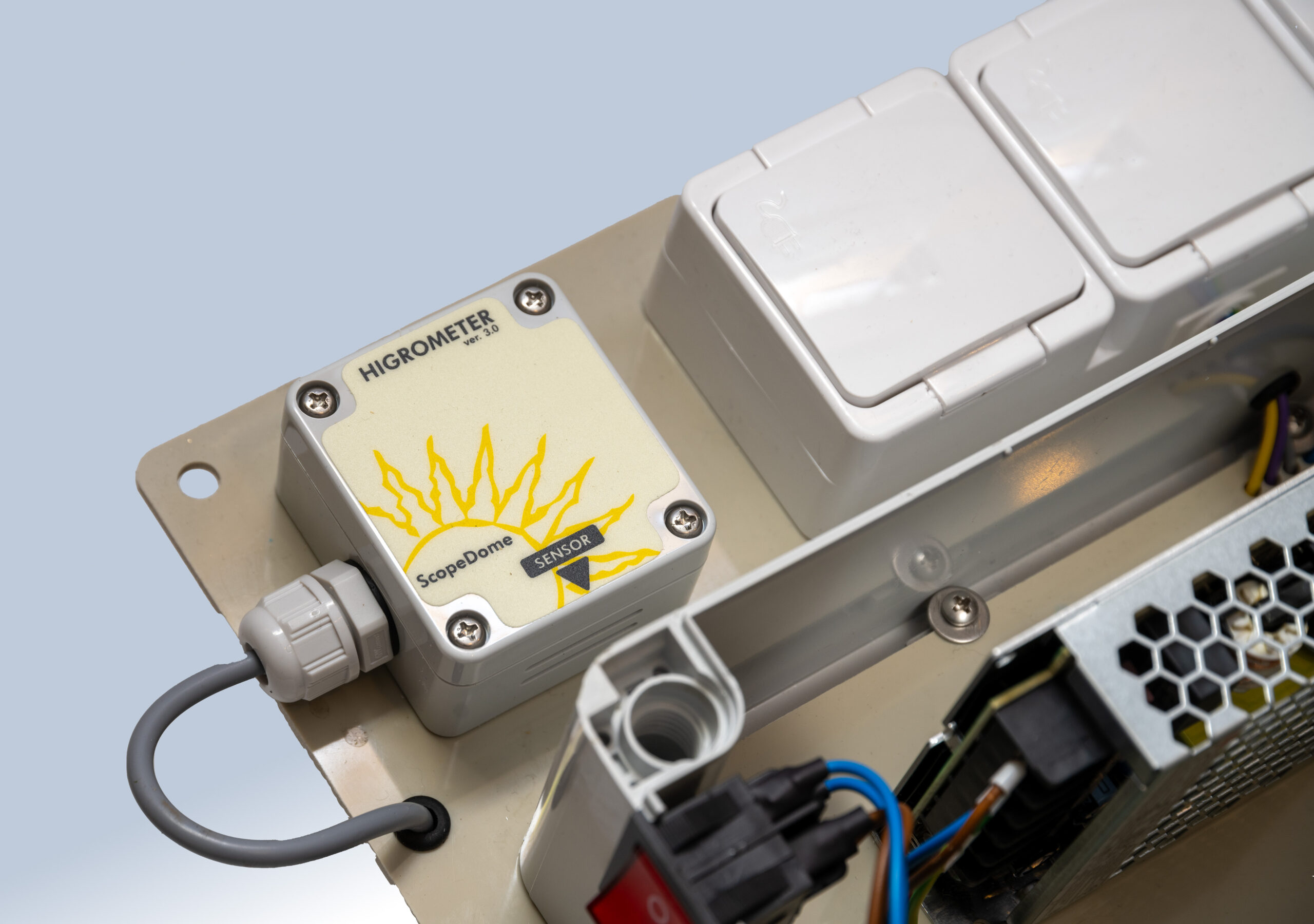

  • built-in pressure gauge
  • built-in thermometer
  • module power supply: external 12V / 2A power supply
  • 2 x inputs for communication with a PC: Ethernet and USB
  • 7 x electromechanical relays 230V / 5A
  • 2 x Open Kolektor 12V / 2A power outputs with PWM control
  • 4 x OneWire inputs
  • 2 x SPI inputs
  • touch screen connector
  • 7 x logic inputs
  • 2 x analog inputs
  • 230V AC power detection input
  • network configuration: static IP address or DHCP
  • control method: USB cable or Ethernet network
  • default IP address: 192.168.1.120 (port 80)
  • working temperature range: -10 ° C to 30 ° C
  • dimensions: 113 x 114 x 20 mm
  • weight: 230 g

Additional info

Buying options (comapre PDF)

  • PCB only
  • card in box
  • card in box with PlugAndPlay
  • LCD touch display
